Product Specification:

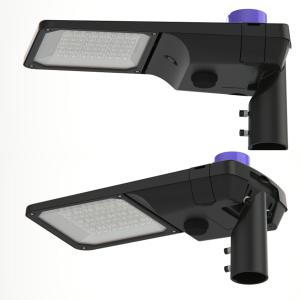

SL-29 series LED street lights provide complete lighting solutions for road and street.
Compliance with international standards ENEC, CB, CE, EMC, LM79, Rohs …
Full wattage from 30 to 300W, with ultra-high luminous efficiency and various lighting distribution
Intelligent control system: timing dimming, 0-10v dimming, Dali, Zigbee, NB-Lot, etc
Class I or ClassII both availble.
| Model |
SL-29-40 |
SL-29-60 |
SL-29-100 |
SL-29-160 |
SL-29-240 |
| Input Wattage (W) |
30/40/50/60 |
50/60/70/80/90 |
80/90/100/120/150 |
150/160/180/200 |
200/240/260/300 |
| Installation Pipe Diameter |
φ45/φ60mm |
φ45/φ60mm |
φ45/φ60mm |
φ45/φ60mm |
φ45/φ60mm |
| Installation Height (m) |
3-6 |
4-8 |
6-10 |
8-14 |
12-14 |
| Input Voltage |
90~305Vac |
| Frequency Range |
50/60Hz |
| Power Factor |
≥0.9 |
| Light source |
LED |
| Driver |
Inventronics |
| Meanwell (optional) |
| other brand of driver(upon request) |
| Luminaire efficacy (lm/W) |
130-190 |
| Color Temperature |
4000K (3000K/5000K,5700K upon request) |
| Color rendering index |
≥70 |
| Diming |
Dali (optional) |
| 1-10V (optional) |
| PWM (optional) |
| Smart control management system (upon request) |
| The environment temperature |
-40～45℃ |
| Humidity of Working Condition |
20%～90%RH |
| Protectin Grade |
IP66 |
| Protection level |
IK08 |
| Standards & Certifications |
ENEC(uncertificated) |
| CB(uncertificated) |
| CE(uncertificated) |
| Rohs(uncertificated) |
| Options |
Photocell |
| Surge protection |
| External cable (length upon request) |
| Smart control device |
| Meterials |
Housing: ADC12 die-cast aluminum |
| Cover: Toughened Glass |
| External Screws: 304 stainless screws |
| Color |
Grey/Black ( other upon request) |
Applications:
Introducing Die-casting Man's YASL-29 High Power LED Street Light, the perfect fit for Hot Sale Energy Saving Dali Parking Garage Luminaires. With its 600*300*80mm size, this LED street light is ideal for installation height COB LED Street Light applications. Constructed from durable aluminum alloy, the YASL-29 is built to withstand the test of time and provide long-lasting illumination. With a lifespan of 50,000 hours and a color temperature of 3000-6500K, this LED light is sure to make your Hot Sale Energy Saving Dali Parking Garage Luminaires shine, and with a warranty of 3 years, you can rest assured knowing your investment is well protected. Get your High Power LED Street Light from Die-casting Man today and experience the difference!
Customization:
Customized Service for High Power LED Street Light
Brand Name: Die-casting Man
Model Number: YASL-29
Place of Origin: Ningbo, China
CRI: Ra>80
Beam Angle: 120°
Power: 100W
Material: Aluminum Alloy
Size: 600*300*80mm
Hot Sale Energy Saving Dali Parking Garage Luminaires, Die Casting Man Aluminum Streetlamp, Pole Top Light 30w 40w 60w 90w
Packing and Shipping:
Packaging and Shipping
High Power LED Street Light products are securely packaged in a cardboard box to prevent damage during transport. The box is then sealed with a waterproof tape to protect it from moisture. It also includes an instruction manual for installation. The product is shipped using a reliable courier service and usually takes about 3-5 business days to reach the destination.
